Peugeot Schematique

Peugeot Schematique 2008 WDS description of the catalogue:

This DVD contains the 2008 release of Peugeot Schematique (Electronic Wiring Diagrams & Connectors Info).
Fully working, ready to use, the 2008 version was released in December 2007, it runs on Windows XP only, (not on the Apple Macintosh) and is the most comprehensive source of wiring diagrams, schematics and related procedures and information available for the Peugeot range.

Fully detailed zoomable wiring diagrams, schematics, pin-outs, installation and repair procedures are easily selected and can be printed any time for use where they are required, and if the paper gets dirty, You can print it again and again! No more old, outdated, heavy manuals. All information is easily located with very easy to use controls so you can find what you need in the shortest possible time.
Left hand and right hand drive, patrol and diesel, ABS or non ABS options, etc.. almost all Peugeot cars are covered.

Models covered:

106 (S20)
107
1007
205
206
207
306 (N5)
307
308
406
407
4007
607
806
807
Bipper
Partner
Expert
Boxer

Peugeot Schematique contains the following documents and features:

Fully Detailed Zoomable Wiring Diagrams
Connectors
Schematics
Pin Charts
Installation Diagrams
Repair Manuals
Exploded Diagrams
Component Locator
Search by DAM (VIN) number
Print Facility
All Component Locations
Pin Assignments
Sections for body, engine, gearbox, transmission, brakes, steering, electrical, interior, air conditioning, ABS, driving assistance, settings, etc..

Conflict Peugeot Schematique 2008 WDS with other catalogues:

No conflicts found

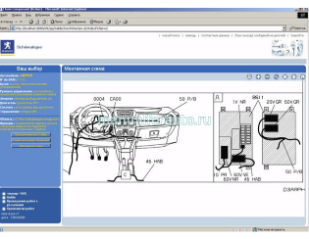

Screenshots
